Exposing the Google Password Secrets



See Also



Contents


About Google Account Password Recovery
Google account is the single centralized account used by all of the Google services such as Gmail, Picasa, GTalk, iGoogle, Desktop Search and many more. Most of the Google's desktop applications such as GTalk, Picasa etc stored the Google account password for future use. Even most of the browsers such as Internet Explorer, Firefox, Chrome store the login passwords for visited websites in their secret store.

This research article throws light on the internal password storage and encryption mechanisms used for storing the Google account password by some of the prominent applications. Also it shows the methods to decrypt the Google password for each of these applications.


GTalk Password Secrets
GTalk is the Google's instant messenger application integrated with voice and video chat feature. Like any of the Google application it uses the same Google account password and stores it for subsequent logins in an encrypted format.

It stores the account information at following location in the registry
HKEY_CURRENT_USER\Software\Google\Google Talk\Accounts
For each account, it creates seperate key with the account name under this registry location as shown below.

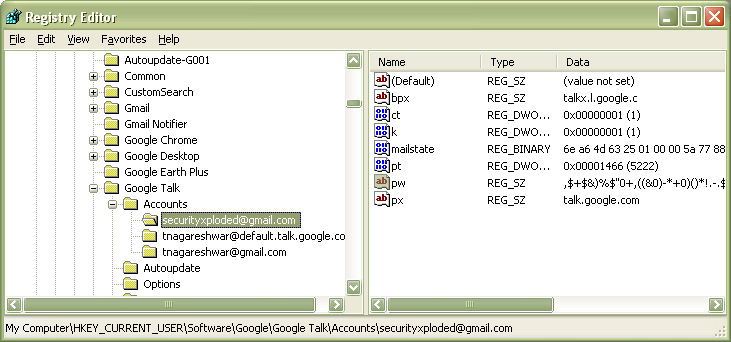

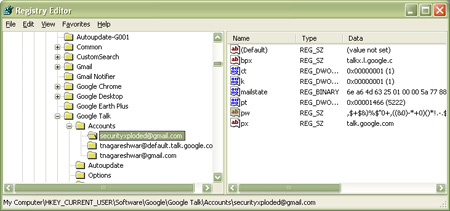

GTalk Password Store

For each stored account, the encrypted password stored in the registry value 'pw'.

GTalk encrypts the Google account password using Windows Cryptography functions. Here are the step by step instructions to decrypt this password.
  • Enumerate through the GTalk accounts registry key and get the stored account name & encrypted password.
  • Now get the currently logged on username & domain name of the system.
  • Create the hash of the username and then hash the domain name on top of it to create entropy data of 16 bytes.
  • Next hash the encrypted password with magic numbers.
  • Finally pass this modified password and entropy data to CryptUnprotectData function to decrypt the password.


Picasa Password Secrets
Picasa is the free photo editing software from Google. It facilitates managing and uploading of photo albums to online Google picasa store for sharing with the community. It uses the same Google account for transfering pictures to online web account and stores this password in encrypted format for subsequent logins.

Picasa stores the Google account login details at one of the following location in the registry. However  latest version of Picasa (3.6) still uses picasa 2 registry location for storing the settings
HKEY_CURRENT_USER\Software\Google\Picasa\Picasa2\Preferences

HKEY_CURRENT_USER\Software\Google\Picasa\Picasa3\Preferences
The Google account name & encrypted password is stored in the registry values 'GaiaUser' & 'GaiaPass' respectively as shown below.

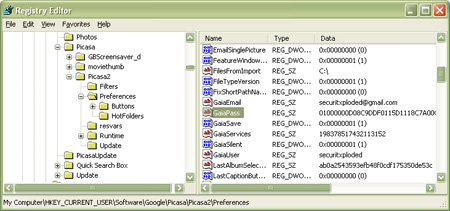

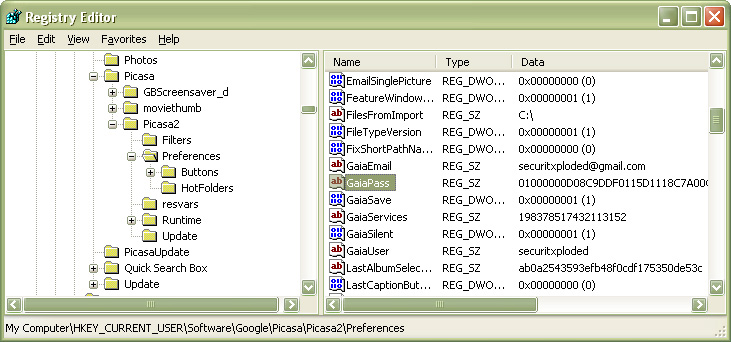

Google Picassa Registry Store

Like Google Talk it also uses Windows Cryptography mechanism to protect the password. Here are the different methods used by various versions of Picasa to decrypt the password

Decrypting Picasa 2 (or earlier versions) Password
 Here are the basic steps to decrypt the Picasa stored password for previous versions
  • Retrieve the stored username & encrypted password from above registry location.
  • Convert the account name to format 'gaia::<account name>' (for example "gaia::securityxploded")
  • Modify the encrypted password with crypto magical operations.
  • Next derive the crypto key using the modified account name as password.
  • Finally decrypt the password using CryptDecrypt function by passing the derived 'crypto key' and modified password.

Decrypting Picasa 3 Password
Here are simple steps to recover the Google password from latest version of Picasa (Version 3.6)
  • Retrieve the stored username & encrypted password from above registry location
  • Convert the encrypted password from hex-string to hex-binary format.
  • Use the CryptUnprotectData function to decrypt the password in clear text.


Gmail Notifier Password Secrets
Gmail Notifier is the standalone systray plugin which notifies user about incoming mails in currently configured gmail account.

Based on Internet Explorer version, Gmail Notifier uses different method to store the google account password. For IE version 7 or later, it uses 'Windows Credential Provider' for securely storing the password. Here are simple steps to recover the password...
  • Enumerate through all the stored password in 'Windows Credentail Provider' using CredEnumerate function.
  • Select the entries which are associated with Google account by checking if TargetName begins with text 'Microsoft_WinInet_www.google.com:443'
  • For each of these discovered Google accounts, decrypt the password using CryptUnprotectData function.
Here is the sample code illustrating this method.

Credits : Thanks to SapporoWorks for original work

void DecryptGmailNotifierPassword()
{
DATA_BLOB DataIn;
DATA_BLOB DataOut;
DATA_BLOB OptionalEntropy;
tmpSalt[37];
char *strSalt={"abe2869f-9b47-4cd9-a358-c22904dba7f7"};

char strURL[1024];
char strCredentials[1024];
char strUsername[1024];
char strPassword[1024];

  //Create the entropy/salt required for decryption...
  for(int i=0; i< 37; i++)
    tmpSalt[i] = (short int)(strSalt[i] * 4);

  OptionalEntropy.pbData = (BYTE *)&tmpSalt;
  OptionalEntropy.cbData = 74;

  DWORD Count;
  PCREDENTIAL *Credential;

  //Now enumerate all http stored credentials....
  if(CredEnumerate(NULL,0,&Count,&Credential))
  {
     for(int i=0;i<Count;i++)
     {
        if( (Credential[i]->Type == 1) &&
           _strnicmp(Credential[i]->TargetName, "Microsoft_WinInet_www.google.com", strlen("Microsoft_WinInet_www.google.com")) == 0 )
        {
           DataIn.pbData = (BYTE *)Credential[i]->CredentialBlob;
           DataIn.cbData = Credential[i]->CredentialBlobSize;

           if(CryptUnprotectData(&DataIn, NULL, &OptionalEntropy, NULL,NULL,0,&DataOut))
           {
              //Extract username & password from credentails (username:password)
              sprintf_s(strCredentials, 1024, "%S", DataOut.pbData);

              char *ptr = strchr(strCredentials, ':');
              *ptr = '\0';
              strcpy_s(strUsername, 1024, strCredentials);
              ptr++;
              strcpy_s(strPassword, 1024, ptr);

              printf("Gmail Notifier Stored account details are, Username=%s, Password=%s", strUsername, strPassword);

           }
        }
     } // End of FOR loop

     CredFree(Credential);
  }

} //End of function

Gmail Notifier uses the 'Protected Storage' to store the Google account password for IE version below 7. Here are simple steps to recover such a password.
  • Use the 'Protected Storage' API functions to enumerate through the stored website entries.
  • Select the entries which are associated with Google by checking if name contains text 'www.google.com'
  • Then read the credentials fot this account using PStore functions and parse them out.
This decryption method is clearly illustrated with code example at below location,

'Exposing the Secrets of Internet Explorer'


Gmail notifier is no longer available as standalone application and its now integrated with GTalk.



'Google Desktop Search' Password Secrets
'Desktop Search' is Google's solution to searching on the local system. Additionally you can configure it to index & search your Gmail account by setting up the options as shown below.

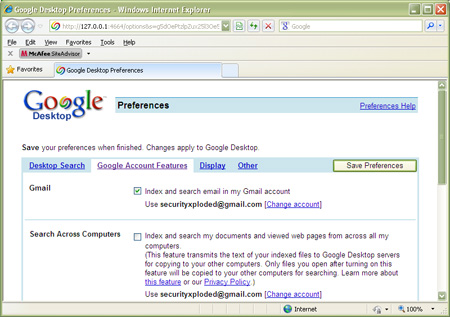

Google Desktop Options

Any such configured Google account is stored in the following registry location.
HKEY_CURRENT_USER\Software\Google\Google Desktop\Mailboxes\Gmail
The 'POP3_name' & 'POP3_credentials' registry values hold the account name & encrypted password as shown below

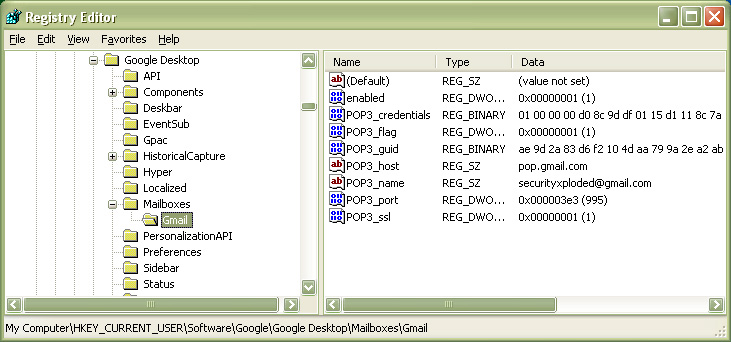

Google Desktop Registry

Here are steps to recover this password
  • Retrieve the Google account name & encrypted password from the above mentioned registry location
  • Next use the CryptUnprotectData function to uncover the password in plain text.


Web Browsers & Google Password
This section explains how each of these popular browsers store the passwords, how to distinguish between Google & other passwords and finally how to recover the Google password from their secret store.

Firefox
Firefox stores the account passwords in its sign-on secret store using Triple-DES encryption coupled with BASE64 encoding technique. Different versions of Firefox used different method to store the login passwords. Initial versions of Firefox used signons.txt while latest versions uses signons.sqlite (SQLite database file) for storing all login details for visited websites.

For more details on how different versions of Firefox store the secrets and what storage format is being used, refer to section 'Firefox Password Secrets'

Firefox stores all website passwords including Google passwords ofcourse at the user consent. To recover the Google password from this big list we need to distinguish between the Google & other passwords.

This task is not difficult as Firefox stores the website URL along with encrypted username & password for each of the stored login entries. Here we just need to check if URL contains the magic string 'google.com' and then recover only those details to recover real Google username & password.



Internet Explorer
Like Firefox and most other browsers, Internet Explorer also stores the sign-on credentials for all visited websites.

Before version 7, Internet Explorer used the famous 'Protected Storage' to store such sign-on passwords. Since it was less secure and easy to decipher, with version 7 onwards IE uses 'Credential Provider' store & 'Windows Cryptography' functions to securely store the passwords.

Here is the detailed research article which explains how to recover the passwords from any IE version, 'Exposing the Secrets of Internet Explorer'

As IE will be storing the passwords for all the websites, we need to separate out Google passwords from it. For older version using 'Protected Storage' mechanism we can simply check for URL entries against 'google.com' to get the stored Google login details. However for version 7 onwards we need to have Google login URLs in the IE history database as explained in above research article.

So before we proceed to recover Google Password, we need to add following login URLs
  • https://www.google.com/accounts/servicelogin
  • https://www.google.com/accounts/serviceloginauth
It depends on which URL is used by user to login to Google account. Generally such URLs will be in IE history but sometimes it may have been deleted accidentally by user.

You can use IEPasswordDecryptor to add these URLs to IE history database. Once we add these URLs to the IE history we can proceed to recover any stored Google passwords IE Credential store.



Google Chrome
Like Internet Explorer and other browsers, Chrome also stores the login passwords for all visited websites based on user consent. Chrome uses Sqlite database to store the account information in encrypted format.

For more information on deciphering the website login passwords from Chrome database read the article, 'Exposing the Secrets of Google Chrome'

Now in order to distinguish between Google & other account passwords we just need to check for 'google.com' in the URL for each of entries.



Opera
Opera browser also stores the login username & password for all visited websites at user's content. Opera uses the DES algorithm to encrypt the password and store it along with other details in the magic wand file.

For more details on the storage format used by Opera and complete code to decrypt such password refer to the article, "Exposing the Secret of Decrypting Opera's Magic Wand"

Each of such stored entries contain the main URL & login URL of the website. Here we have check each of login URL for 'google.com' to recover only Google account passwords.



Messengers & Google Password
Most of the universal messengers such as Trillian, Digsby, Paltalk etc supports Google chat as well as other protocols such as Gtalk, Yahoo, AIM etc. Like web browsers these messengers also store the login details including password for future use.

But not all of them store the account passwords locally. Some of them actually store it in their servers. Hence it is difficult to recover such account passwords.

Here we will present details on recovering the login passwords from Messengers such as Paltalk, Pidgin,  Miranda etc. These messengers store the passwords locally on user's system in their own encryption format and storage mechanism.


Paltalk Messenger
Paltalk is one of the emerging messenger of recent times which supports multiple messenger protocols including Google chat. It stores the login account passwords in the registry using the different encryption mechanism for main and other protocols.

For more details on how Paltalk stores the passwords under the hood and complete code to recover the Paltalk passwords, refer to our research article, "Exposing the Password Secrets of PaltalkScene"

As mentioned in this article, login passwords for each of the protocols are stored in the registry under unique subkey. Google account passwords are stored under subkey named 'GGL'. So once we find this key, we can decrypt the encrypted password stored under this key to get the Google password.



Pidgin Messenger
Pidgin (formerly GAIM) is a popular universal messenger which across multiple platforms including Windows & Linux.  It supports most of the messenger protocols including aim, msn, yahoo, myspace, msn, windows live, gtalk etc.

Like other messengers Pidgin stores all remembered passwords locally in the file "Accounts.xml"  at following location.
[Windows XP]
C:\Documents and Settings\<user_name>\Application Data\.purple

[Windows Vista & Windows 7]
C:\Users\<username>\AppData\Roaming\.purple
Older versions (Gaim) used .gaim folder instead of .purple to store the account details. For each stored account, 'Accounts.xml' file contains the <account> tag, which has sub tags <name> & <password> containing the account email address and password in plain text respectively.

In order to distinguish between Google and other accounts, we need to look at <protocol> field and check if its contains 'Jabber protocol' as shown below.

<protocol>prpl-jabber</protocol>

Since Jabber is generic protocol we  can cross-check against the account email address and check for "gmail.com" to be certain about Google account.



Miranda Messenger
Miranda is the new universal messenger which also supports most of popular chat protocols including Google. Miranda stores the login passwords in the local database file using its own proprietary format.

For more details on storage format used by Miranda and how to recover passwords from it, refer to our research article "Exposing the Password Secrets of Miranda"

Miranda uses Jabber protocol for Google and Gmail chat. As a result all such Jabber based accounts are stored under protocol name 'JABBER' in its database. Here we need to distinguish Google from other Jabber accounts such as Gmail.

For each Jabber protocol, Miranda stores 'LoginServer', 'LoginName' & 'LoginPassword'. Here we can use 'LoginServer' as the distinguishing key among different Jabber accounts. For Google accounts, LoginServer is set to'gmail.com'. Using this information we can easily recover only Google account passwords from Miranda password store.



Decrypting the Google Password using GooglePasswordDecryptor
GooglePasswordDecryptor is the FREE tool to instantly recover stored Google account passwords by various Google applications as well as popular web browsers. Most of the Google's desktop applications such as GTalk, Picassa etc store the Google account passwords to prevent hassale of entering the password everytime for the user. Even the web browsers store the sign-on passwords including Google account passwords in an encrypted format. GooglePasswordDecryptor automatically crawls through each of these applications and recovers the encrypted Google account password..

GooglePasswordDecryptor

It works on wide range of platforms starting from Windows XP to latest operating system Windows 7. For more information and to download this tool, visit the main page of GooglePasswordDecryptor.
